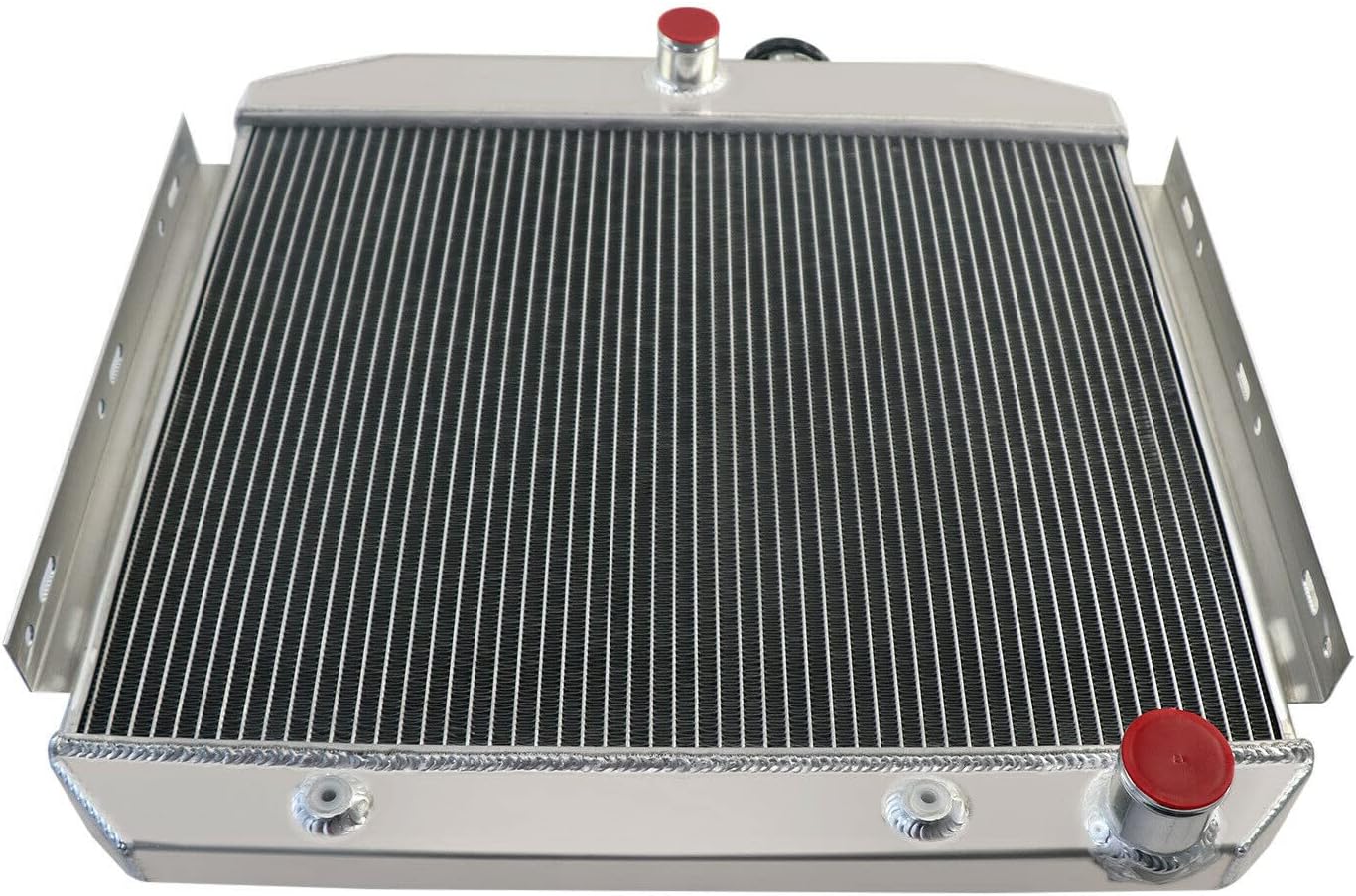

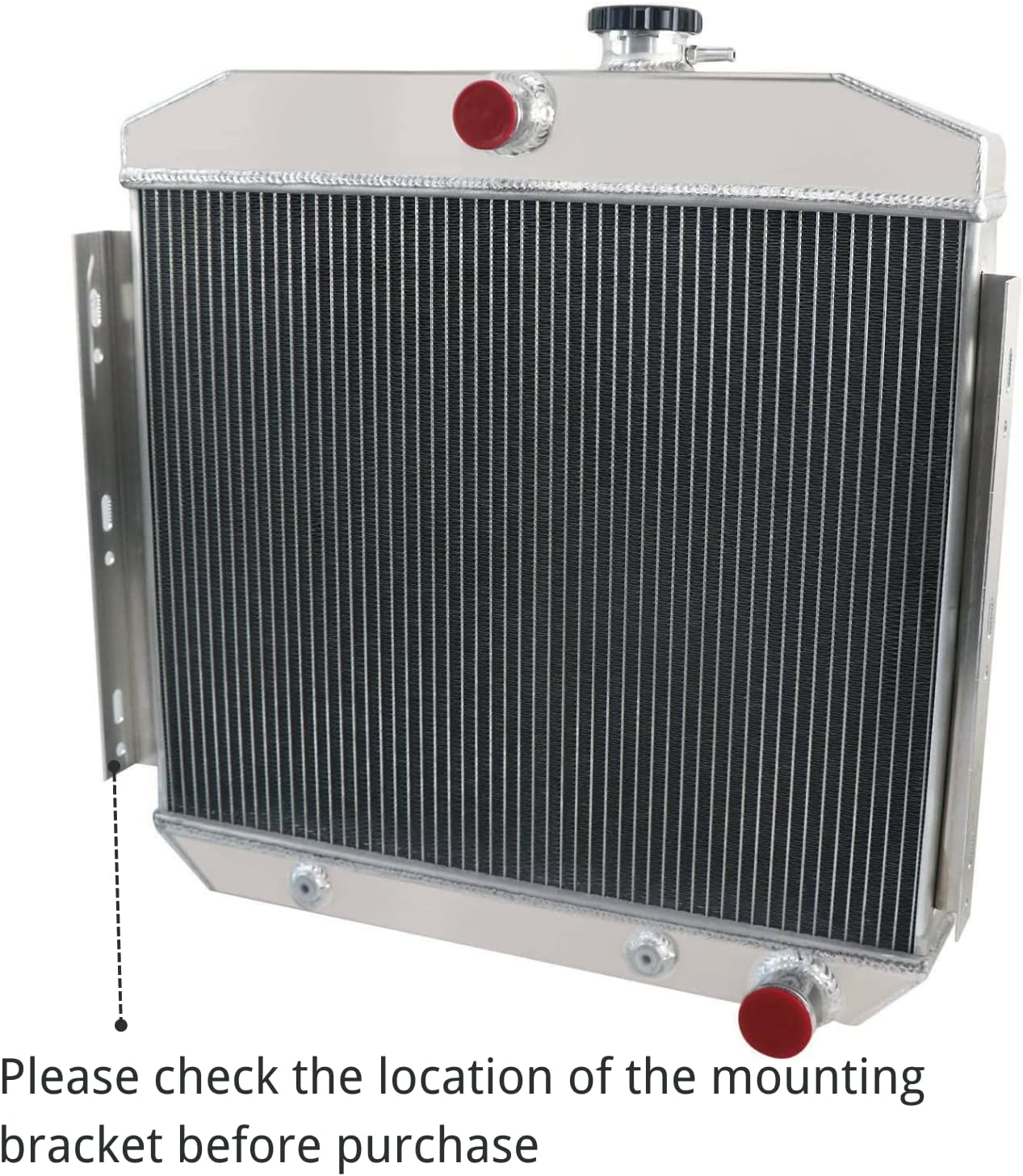

Aluminum Radiator for 1955-1957 56 Chevy Bel Air One-Fifty Two-Ten Series 3.8L 4.3L 4.6L L6 V8 GAS, All Aluminum Radiator Cooler (3 Row Radiator Shroud Fan Relay Kits)

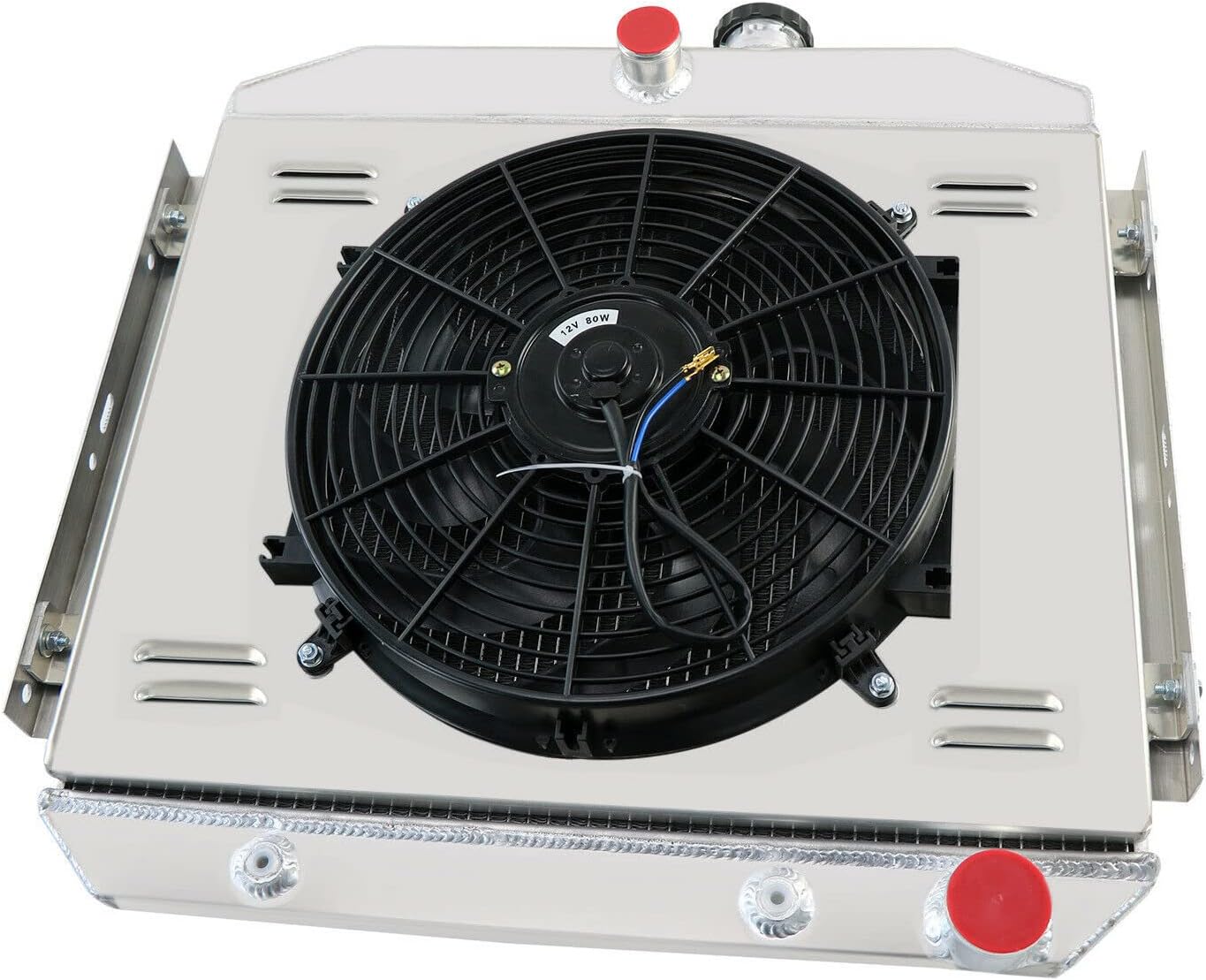

This Radiator Compatible with For 1955-1957 Chevy Bel Air 3.8L L6 Engines For 1955-1957 Chevy Bel Air 4.3L V8 Engines For 1957 Chevy Bel Air 4.3L V8 Engines For 1957 Chevy Del Ray 3.8L L6 Engines For 1957 Chevy Del Ray 4.3L V8 Engines For 1957 Chevy Del Ray 4.6L V8 Engines For 1955-1957 Chevy One-Fifty Series 3.8L L6 Engines For 1955-1957 Chevy One-Fifty Series 4.3L V8 Engines For 1957 Chevy One-Fifty Series 4.6L V8 Engines For 1955-1957 Chevy Two-Ten Series 3.8L L6 Engines For 1955-1957 Chevy Two-Ten Series 4.3L V8 Engines For 1957 Chevy Two-Ten Series 4.6L V8 EnginesThis Listing Is Including 1 X 3 -Row Aluminum Radiator 1 X Aluminum Shroud 1 X 14" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details Core Row: 3 Row Core Material: All Aluminum Tank Material: All Aluminum Radiator Flow: Down Flow Mounting Type: OEM Mount The tank is welded by TIG CNC machined filler neck and cap High Performance Racing Spec Fan Specification Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050" Thickness (in): 2.500" Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiatorPart Number 5056 CC5056 EC5056 MC5056 DPI5056 AE5056 CUC5056 RA-SBC55-3 RA-SBC55-2

• Core Size: 17 1/4" H X 21 1/2" W; Overall Size: 24 1/2" H X 23 3/4" W
• Hose Fittings: IN: 1 1/2 - OUT: 1 3/4
• Trans Cooler: 1/2 20 Straight Thread G1/4
• Performance: Made of high quality Aircraft AA5052 grade aluminum Construction. At least 35% more efficient than stock one.
• Leading-edge welding craftsmanship, CE approval. Innovative engineering, manufacturing technology and quality control ensure superior quality.
